To avoid the cross contamination, the endoscope ought to be disinfected after using. But how to accurately evaluate the disinfection efficacy, it has been a difficult problem for a long time.

TAILIN innovatively developed the endoscope microbial limit test system to solve this problem.

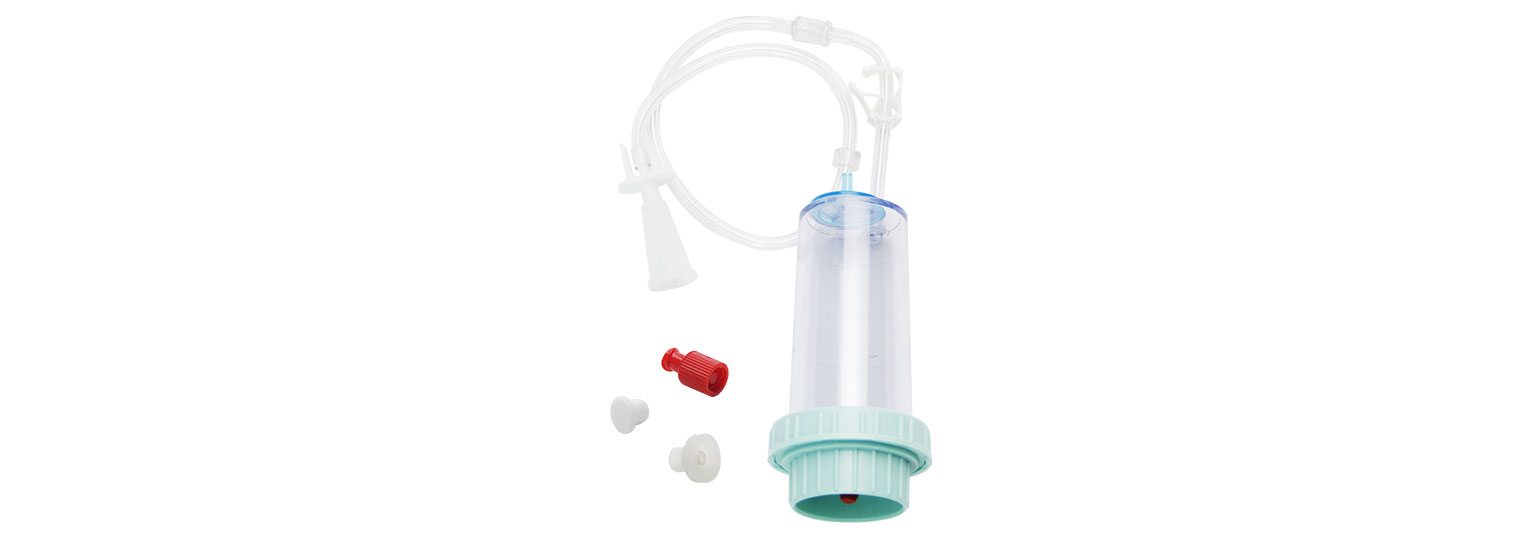

The Endoscope Microbial Test System consists of HTY-WP02 peristaltic pump for sampling,HTY-101 diaphragm pump for suction filtering,  and FC501 filtration cup.

Step 1: Rinse the endoscope with sterile water, and transferring the rinsed water in FC501 filtration cup by HTY-WP02 peristaltic pump;

Step 2: Install the FC501 on the HTY-101 diaphragm pump;

Step 3: Start the HTY-101 diaphragm pump, the sampling rinsed water will filtering through theFC501 filtration cup.

Step 4: The microorganism will be hold on the filtration membrane, if there is any.

Step 5: Put the filtration membrane in the culture media for incubation and counting.

The Endoscope Microbial System can fit for most of endoscope brands; it is closed system which can avoid the external contamination when checking the endoscope disinfection/cleaning efficacy.

Luer threading connector for tight sealing and easy to dismantle;

Luer plug to avoid liquid drip;

Special designed connection to syringe;

High rigid and transparent cup body;

High flow rate filtration membrane to guarantee the microbial recovery.

Cup volume: 120 mL

Filtration membrane: MCE

Membrane pore size: 0.45μm

Ethylene Oxide （EO）sterilization

Consumables used for the sampling during endoscope microbial test.
