To avoid the cross contamination, the endoscope ought to be disinfected after using. But how to accurately evaluate the disinfection efficacy, it has been a difficult problem for a long time.

TAILIN innovatively developed the endoscope microbial limit test system to solve this problem.

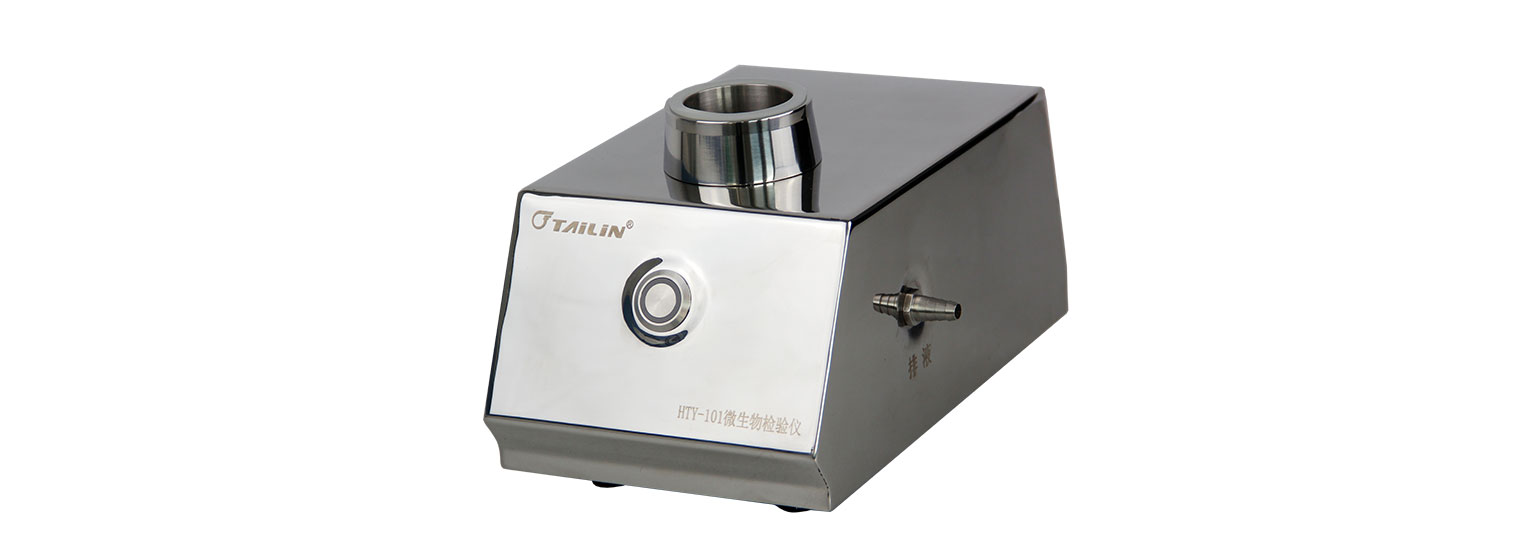

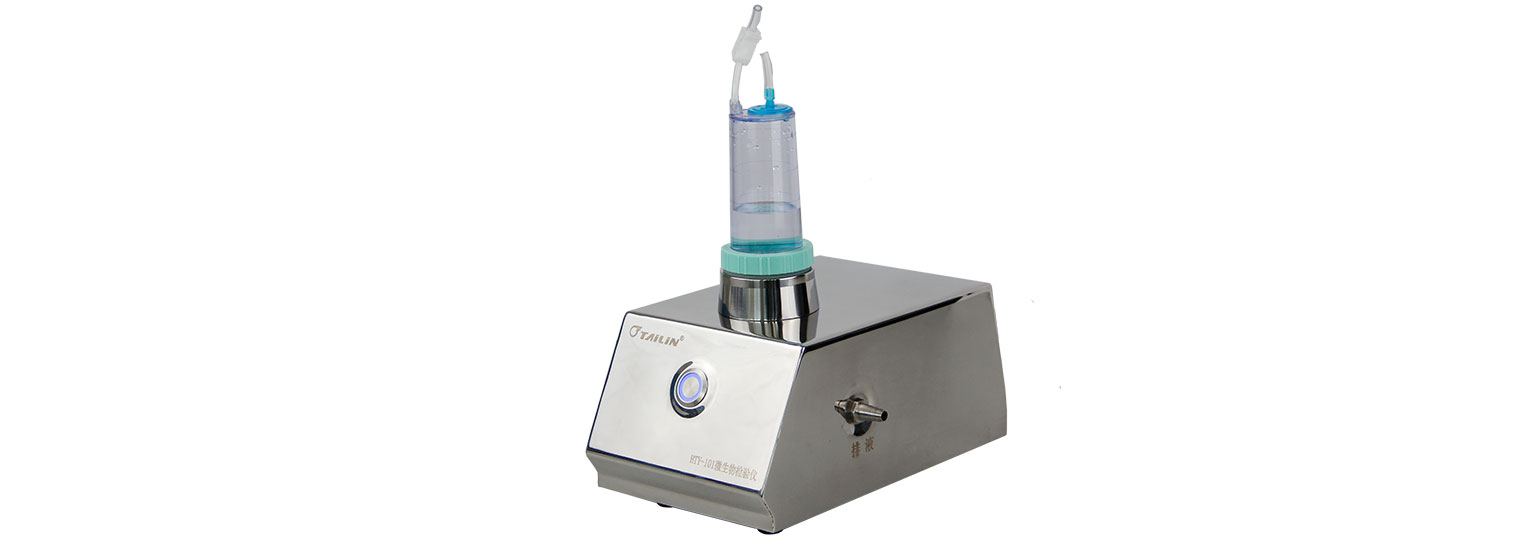

The Endoscope Microbial Test System consists of HTY-WP02 peristaltic pump for sampling,HTY-101 diaphragm pump for suction filtering,  and FC501 filtration cup.

Step 1: Rinse the endoscope with sterile water, and transferring the rinsed water in FC501 filtration cup by HTY-WP02 peristaltic pump;

Step 2: Install the FC501 on the HTY-101 diaphragm pump;

Step 3: Start the HTY-101 diaphragm pump, the sampling rinsed water will filtering through the FC501 filtration cup.

Step 4: The microorganism will be hold on the filtration membrane, if there is any.

Step 5: Put the filtration membrane in the culture media for incubation and counting.

The Endoscope Microbial System can fit for most of endoscope brands; it is closed system which can avoid the external contamination when checking the endoscope disinfection/cleaning efficacy.

Closed membrane filtration method;

Built-in diaphragm pump for efficient filtration;

Small size, less space occupation;

On/Off button with indicator light, simple and intuitive;

Concise internal pipeline without dead corner inside;

Made of polished mirror stainless steel, easy to clean and disinfect.

Power supply: AC 220V/50Hz

Power consumption: 25W

Pumping flow: ≥1200mL/min

Noise: ≤60dB (load condition)

Net Weight: 2.5kgs

Dimensions: 15cm x 25cm x 11cm

Drainage tube: inner diameter Φ7mm～Φ11mm silicone

Consumables: FC501 filtration cup

Used for the sampling during endoscope microbial test.
