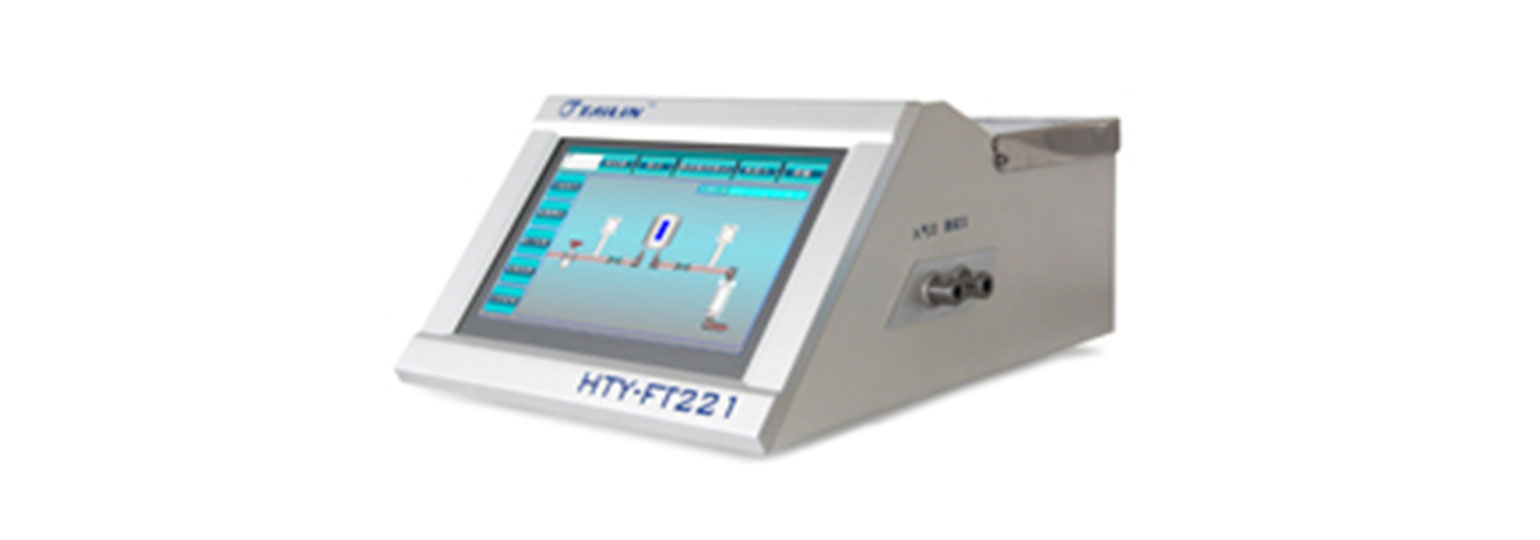

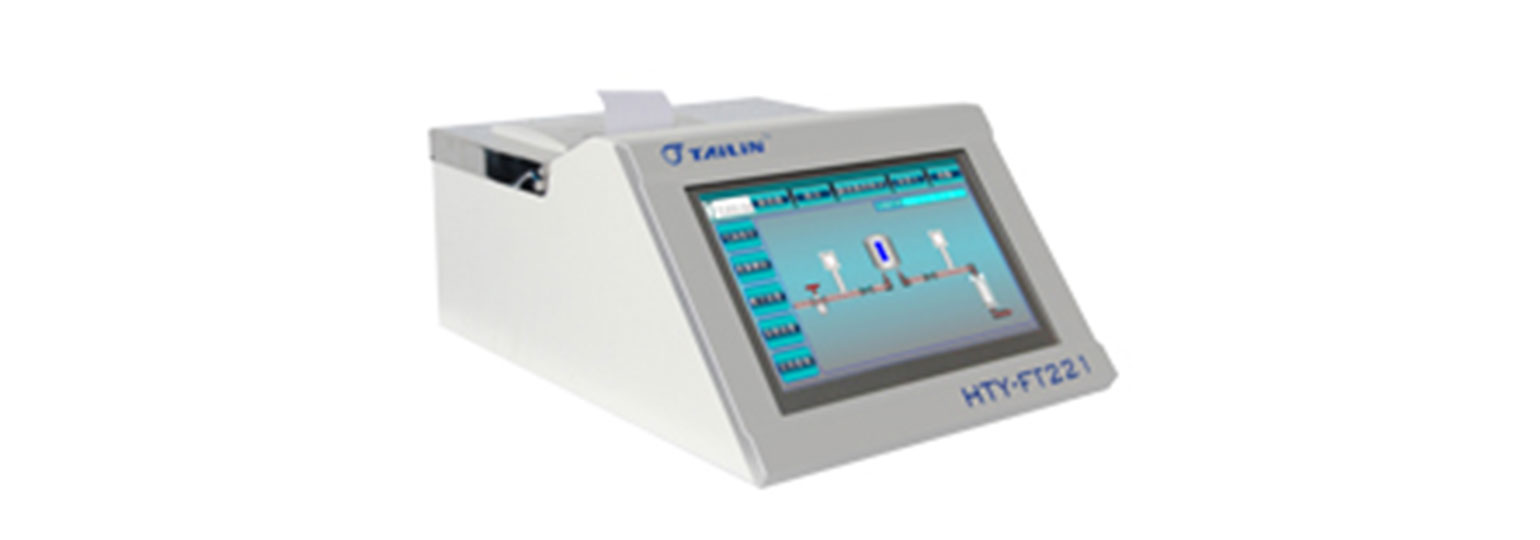

HTY-FT22 is designed for inspecting the integrity of all kinds of absolute rated filters,
such as pleated filter cartridge, capsule filter and syringe filters etc.
Easy to clean, suitable for using in cleanroom;
Data storage and graphic display;
System self-diagnosis before testing;
Splash and dust proof;
User friendly, touch screen operation;
Full automatically running;
St?ubli Nipple and coupling;
Built-in stylus printer.
Power supply:(100-240) VAC, 50/60HZ
Power consumption: 70W
Accuracy: ±3% OR ±5‰F.S (Full Scale), whichever is the greater
Test Range:
forward flow: (0.1-200)mL/min, Resolution: 0.1mL/min
water intrusion: (0.05-50)mL/min, Resolution:0.01mL/min
bubble point: (700-6000) mbar, Resolution: 50mbar
Repeatability: RSD≤3%
Dimensions: 40cm×30cm×19cm
Complete validation protocols;
Free online instructions.
*HTY-FT221 is not compliance with 21 CFR Part 11 regulation, while the HTY-FT223 can meet it.
Technical specifications are subject to change without notice. Copyright reserved by Tailin.
